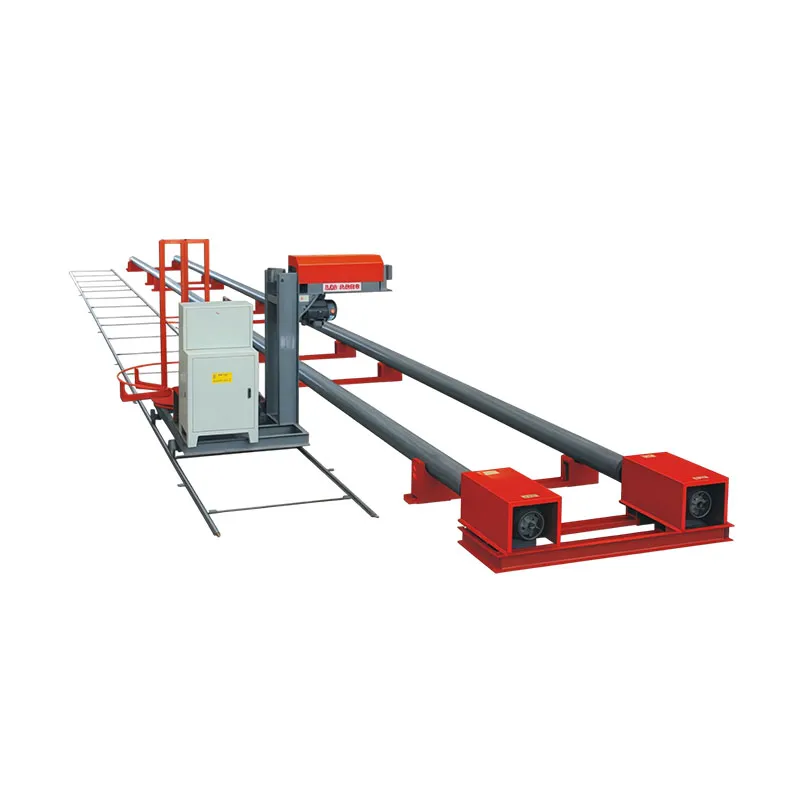

2000 Type CNC Rebar Cage Hooping Machine
2000 Type CNC Rebar Cage Hooping Machine
The 2000 Type CNC Rebar Cage Hooping Machine is a high-efficiency device specifically designed for rebar cage winding. Compared to traditional manual tying and welding methods, it significantly reduces on-site tying and welding steps, substantially decreasing manual labor and saving manpower, while effectively ensuring the quality of the rebar cage. This technologically advanced equipment features rapid construction, convenient transportation, and utilizes an advanced friction drive principle. It is simple and intuitive to operate, adaptable to various rebar cage specifications, and widely used in rebar cage fabrication for various infrastructure projects, contributing to the high efficiency and standardization of rebar cage processing.
Send Inquiry
Product Description
The core of 2000 Type CNC Rebar Cage Hooping Machine (Double Wire) uses a friction drive principle, placing the rebar cage horizontally between two sets of powered rollers for rotation. Combined with an advanced electric support frame, the height is freely adjustable, ensuring uniform speed operation of the wire and the main unit, fundamentally guaranteeing the stability and consistency of the winding process. The equipment offers fast winding speed and stable quality, a simple and reasonable structural design, strong adaptability, and significantly reduces the labor intensity of operators. No complex operating skills are required, making it easy to learn and use.
Compared to traditional manual processing methods, 2000 Type CNC Rebar Cage Hooping Machine (Double Wire) completely simplifies the rebar cage fabrication process, eliminating numerous manual on-site binding and welding steps. This not only saves labor costs but also effectively avoids quality errors caused by manual operation, ensuring higher quality rebar cages. The equipment's control interface is simple and intuitive, allowing operators to quickly familiarize themselves with the operating procedures without requiring specialized training. Furthermore, the equipment's overall design facilitates transportation and allows for flexible adjustment of the working position according to construction needs, resulting in fast and efficient construction suitable for various on-site processing scenarios.
The 2000 Type CNC Rebar Cage Hooping Machine integrates high efficiency, automation, and stable performance, providing an innovative solution for core rebar cage processing. The equipment uses a friction drive principle, with two sets of powered rollers driving the rebar cage to rotate smoothly. Combined with the freely adjustable height of the electric support frame, it ensures that the wire rod and the main unit move synchronously and at a uniform speed, achieving fast and stable rebar winding operations. The automatic rebar winding system precisely replaces traditional manual tying and welding, eliminating tedious manual steps, greatly reducing on-site work, saving human resources, while ensuring uniform rebar cage spacing, structural strength, and avoiding human error. The equipment features a simple structure and high adaptability, flexibly adapting to the processing needs of rebar cages of different diameters and lengths, reducing operational complexity. The control interface is intuitive and easy to understand, integrating a PLC control system and touchscreen operation. Parameter adjustment is convenient, and equipment status is monitored in real time, requiring no complex training to operate. The overall design balances efficiency and reliability, ensuring stable finished product quality while improving production efficiency, meeting the needs of high-efficiency mass production, and providing strong support for cost reduction and efficiency improvement in engineering projects.
Compared to traditional manual processing methods, 2000 Type CNC Rebar Cage Hooping Machine (Double Wire) completely simplifies the rebar cage fabrication process, eliminating numerous manual on-site binding and welding steps. This not only saves labor costs but also effectively avoids quality errors caused by manual operation, ensuring higher quality rebar cages. The equipment's control interface is simple and intuitive, allowing operators to quickly familiarize themselves with the operating procedures without requiring specialized training. Furthermore, the equipment's overall design facilitates transportation and allows for flexible adjustment of the working position according to construction needs, resulting in fast and efficient construction suitable for various on-site processing scenarios.
The 2000 Type CNC Rebar Cage Hooping Machine integrates high efficiency, automation, and stable performance, providing an innovative solution for core rebar cage processing. The equipment uses a friction drive principle, with two sets of powered rollers driving the rebar cage to rotate smoothly. Combined with the freely adjustable height of the electric support frame, it ensures that the wire rod and the main unit move synchronously and at a uniform speed, achieving fast and stable rebar winding operations. The automatic rebar winding system precisely replaces traditional manual tying and welding, eliminating tedious manual steps, greatly reducing on-site work, saving human resources, while ensuring uniform rebar cage spacing, structural strength, and avoiding human error. The equipment features a simple structure and high adaptability, flexibly adapting to the processing needs of rebar cages of different diameters and lengths, reducing operational complexity. The control interface is intuitive and easy to understand, integrating a PLC control system and touchscreen operation. Parameter adjustment is convenient, and equipment status is monitored in real time, requiring no complex training to operate. The overall design balances efficiency and reliability, ensuring stable finished product quality while improving production efficiency, meeting the needs of high-efficiency mass production, and providing strong support for cost reduction and efficiency improvement in engineering projects.
Product Parameter
2000 Type CNC Rebar Cage Hooping Machine(Double Wire)
2000 Type CNC Rebar Cage Hooping Machine( (Single Wire)
| Main Technical Parameters | |||
| Product Model | 2000 type | Processing Speed | 600-3000mm |
| Winding Speed | 0-15.4m/min | Length | 12m |
| Trolley Speed | 0-1.38m/min | Power Motor | 7.5kw |
| Machine Weight | 3900KG | Trolley Motor | 3kw |
| Installation Dimensions | 19M*4M | Straightening Motor | 5.5kw |
2000 Type CNC Rebar Cage Hooping Machine( (Single Wire)
| Main Parameters | |||
| Equipment Model | Type 2000 | Rebar Cage Travel Speed | 0-1.36m/min |
| Rebar Cage Diameter | ɸ600-30000mm | Total Equipment Power | 18kw |
| Rebar Cage Length | 12m | Total Equipment Weight | 3500kg |
| Rebar Winding Linear Speed | 0-15.3m/min | Dimensions | 13000×1830×800mm |
Product Feature
The 2000 Type CNC Rebar Cage Hooping Machine(Double Wire) boasts outstanding core features. Compared to traditional manual binding and welding, its biggest advantage lies in significantly reducing on-site manual labor, saving manpower, while simultaneously improving the processing quality of rebar cages and avoiding the uncertainties of manual operation. Utilizing a friction drive principle, coupled with an adjustable-height electric support, it ensures uniform and synchronous operation of the wire and the main machine, resulting in fast winding speed, stable quality, and high processing precision.
The 2000 Type CNC Rebar Cage Hooping Machine(Double Wire) boasts a simple structure and strong adaptability, capable of processing rebar cages ranging from 600-3000mm in diameter. It meets the processing needs of various rebar cage specifications, offering low labor intensity, convenient operation, and an intuitive control interface, lowering the operational threshold. Its leading technology, rapid construction, and convenient transportation make it widely used in rebar cage fabrication for various infrastructure projects such as subways, bridges, buildings, airports, and highways. It is particularly suitable for construction units and processing companies with high requirements for rebar cage winding efficiency and quality, seeking cost reduction, efficiency improvement, and convenient construction.
2000 Type CNC Rebar Cage Hooping Machine(Single Wire) Features and Applications
The 2000 Type CNC Rebar Cage Hooping Machine focuses on technological advantages and engineering practicality, deeply integrating efficient production with scenario requirements:
1. The highly efficient automated rebar winding system achieves synchronous and uniform speed operation of the wire and the main unit through friction transmission and electric support, resulting in fast and stable winding speed. In large-scale projects such as bridges and tunnels, a single machine can replace multiple workers, significantly shortening the processing cycle and reducing labor costs, especially advantageous in projects with tight schedules.
2. Precise and Stable Structural Design: Relying on the rotational support of two sets of powered rollers and automatic bracket tension adjustment, the concentricity and verticality of the rebar cage during processing are ensured. In pile foundation engineering, the equipment effectively avoids construction problems caused by structural deviations, guaranteeing project quality and safety, and meeting high-standard construction requirements.
3. Flexible Adaptability and Convenient Operation: Equipment parameters can be flexibly adjusted to adapt to the processing of rebar cages with diameters of Φ600-3000mm and lengths ≤12m. The PLC + touch screen control system simplifies the operation process, allowing for one-click parameter adjustment. It is suitable for mixed production scenarios of rebar cages of various specifications, such as municipal engineering, with quick mode switching reducing downtime and improving equipment utilization.
4. Energy Efficiency and Low Maintenance Costs: The equipment has a total power of 18kW, low energy consumption, and reduces electricity costs over long-term operation; key components have a long lifespan and low maintenance frequency. The compact design (13000×1830×800mm) adapts to various workshop sites, ensuring continuous and stable operation of projects and reducing overall operating costs. By deeply integrating its technological features with engineering scenarios, the equipment provides reliable and efficient rebar cage processing solutions for diverse construction needs.
Product Details
The 2000 Type CNC Rebar Cage Hooping Machine(Double Wire) features comprehensive performance configuration, adaptable to processing various rebar cage specifications, covering a processing range of 600-3000mm, and capable of processing rebar cages up to 12m in length, meeting the personalized processing needs of various infrastructure projects. The winding speed is flexibly adjustable between 0-15.4m/min, and the trolley speed is adjustable between 0-1.38m/min, allowing precise control of the winding rhythm and density according to processing requirements to ensure processing quality.
The 2000 Type CNC Rebar Cage Hooping Machine(Double Wire) boasts a powerful configuration, equipped with a 7.5KW main motor, a 3KW trolley motor, and a 5.5KW straightening motor, ensuring stable power output to meet the demands of long-term continuous operation and guaranteeing stable operation under high-intensity processing conditions. Weighing 3800KG, the robust structure prevents shaking during operation, ensuring processing accuracy. With installation dimensions of 19M×4M, its rational layout adapts to processing sites of varying sizes. The design also facilitates easy transport, allowing for flexible movement according to construction needs and enhancing operational convenience. The equipment features a simple overall structure, convenient maintenance, low operating costs, suitability for complex on-site processing environments, and a long service life.
I. Automation Level:
Traditional Machinery: Relies on manual tying or semi-automatic rebar winding, resulting in low efficiency, high labor intensity, and high labor costs.
2000 Type CNC Rebar Cage Hooping Machine: Fully automated rebar winding system with friction drive and electric support operating synchronously, improving efficiency by ≥80%, saving labor and significantly reducing labor costs.
II. Processing Accuracy:
Traditional Machinery: Manual operation easily leads to uneven rebar spacing and structural deviations, affecting project quality.
2000 Type CNC Rebar Cage Hooping Machine: Automatic support tension adjustment + PLC precise control, spacing error ≤1mm, ensuring consistent, robust, and reliable rebar cage structure.
III. Ease of Operation:
Traditional Machinery: Complex mechanical structure, requiring professional training for operation, cumbersome parameter adjustments, and time-consuming.
2000 Type CNC Rebar Cage Hooping Machine: Touch screen + PLC intelligent system, one-click parameter adjustment, adaptable to processing of multiple specifications of rebar cages, low operating threshold, and quick switching of production modes.
The 2000 Type CNC Rebar Cage Hooping Machine(Double Wire) boasts a simple structure and strong adaptability, capable of processing rebar cages ranging from 600-3000mm in diameter. It meets the processing needs of various rebar cage specifications, offering low labor intensity, convenient operation, and an intuitive control interface, lowering the operational threshold. Its leading technology, rapid construction, and convenient transportation make it widely used in rebar cage fabrication for various infrastructure projects such as subways, bridges, buildings, airports, and highways. It is particularly suitable for construction units and processing companies with high requirements for rebar cage winding efficiency and quality, seeking cost reduction, efficiency improvement, and convenient construction.
2000 Type CNC Rebar Cage Hooping Machine(Single Wire) Features and Applications
The 2000 Type CNC Rebar Cage Hooping Machine focuses on technological advantages and engineering practicality, deeply integrating efficient production with scenario requirements:
1. The highly efficient automated rebar winding system achieves synchronous and uniform speed operation of the wire and the main unit through friction transmission and electric support, resulting in fast and stable winding speed. In large-scale projects such as bridges and tunnels, a single machine can replace multiple workers, significantly shortening the processing cycle and reducing labor costs, especially advantageous in projects with tight schedules.
2. Precise and Stable Structural Design: Relying on the rotational support of two sets of powered rollers and automatic bracket tension adjustment, the concentricity and verticality of the rebar cage during processing are ensured. In pile foundation engineering, the equipment effectively avoids construction problems caused by structural deviations, guaranteeing project quality and safety, and meeting high-standard construction requirements.
3. Flexible Adaptability and Convenient Operation: Equipment parameters can be flexibly adjusted to adapt to the processing of rebar cages with diameters of Φ600-3000mm and lengths ≤12m. The PLC + touch screen control system simplifies the operation process, allowing for one-click parameter adjustment. It is suitable for mixed production scenarios of rebar cages of various specifications, such as municipal engineering, with quick mode switching reducing downtime and improving equipment utilization.
4. Energy Efficiency and Low Maintenance Costs: The equipment has a total power of 18kW, low energy consumption, and reduces electricity costs over long-term operation; key components have a long lifespan and low maintenance frequency. The compact design (13000×1830×800mm) adapts to various workshop sites, ensuring continuous and stable operation of projects and reducing overall operating costs. By deeply integrating its technological features with engineering scenarios, the equipment provides reliable and efficient rebar cage processing solutions for diverse construction needs.
Product Details
The 2000 Type CNC Rebar Cage Hooping Machine(Double Wire) features comprehensive performance configuration, adaptable to processing various rebar cage specifications, covering a processing range of 600-3000mm, and capable of processing rebar cages up to 12m in length, meeting the personalized processing needs of various infrastructure projects. The winding speed is flexibly adjustable between 0-15.4m/min, and the trolley speed is adjustable between 0-1.38m/min, allowing precise control of the winding rhythm and density according to processing requirements to ensure processing quality.
The 2000 Type CNC Rebar Cage Hooping Machine(Double Wire) boasts a powerful configuration, equipped with a 7.5KW main motor, a 3KW trolley motor, and a 5.5KW straightening motor, ensuring stable power output to meet the demands of long-term continuous operation and guaranteeing stable operation under high-intensity processing conditions. Weighing 3800KG, the robust structure prevents shaking during operation, ensuring processing accuracy. With installation dimensions of 19M×4M, its rational layout adapts to processing sites of varying sizes. The design also facilitates easy transport, allowing for flexible movement according to construction needs and enhancing operational convenience. The equipment features a simple overall structure, convenient maintenance, low operating costs, suitability for complex on-site processing environments, and a long service life.
I. Automation Level:
Traditional Machinery: Relies on manual tying or semi-automatic rebar winding, resulting in low efficiency, high labor intensity, and high labor costs.
2000 Type CNC Rebar Cage Hooping Machine: Fully automated rebar winding system with friction drive and electric support operating synchronously, improving efficiency by ≥80%, saving labor and significantly reducing labor costs.
II. Processing Accuracy:
Traditional Machinery: Manual operation easily leads to uneven rebar spacing and structural deviations, affecting project quality.
2000 Type CNC Rebar Cage Hooping Machine: Automatic support tension adjustment + PLC precise control, spacing error ≤1mm, ensuring consistent, robust, and reliable rebar cage structure.
III. Ease of Operation:
Traditional Machinery: Complex mechanical structure, requiring professional training for operation, cumbersome parameter adjustments, and time-consuming.
2000 Type CNC Rebar Cage Hooping Machine: Touch screen + PLC intelligent system, one-click parameter adjustment, adaptable to processing of multiple specifications of rebar cages, low operating threshold, and quick switching of production modes.
